50KN Fast Speed Cable Pulling Winch Air Cooled Diesel Enginen By Shaft

Name: 50KN Fast Speed Cable Pulling Winch Air Cooled Diesel Enginen By Shaft
Brand: shenhong
Price: 1 USD

50KN Fast Speed Cable Pulling Winch Air Cooled Diesel Enginen By Shaft Manufactures

Brand Name : shenhong

Model Number : JJM5B

Certification : BV, CE,ISO

Place of Origin : Jiangsu,China(mainland)

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 Set/Sets per Month

Delivery Time : ten days after the deposit

Packaging Details : plywood case

Engine : diesel engine

Power : 6.3KW,3600rpm

Capacity : 50KN

Motor : diesel

Weight : 200kg

Dimension : 1200*600*750mm

Warranty : one year

Package : plywood case

Contact Now

50KN Fast Speed Cable Pulling Winch Air Cooled Diesel Enginen By Shaft

Application

It is used for tower erection,pole setting,stringing wire in electrical power line construction.Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.

Feature

1. Small size & compact structure

2. Light weight

3. High efficiency

4. Safe and reliable

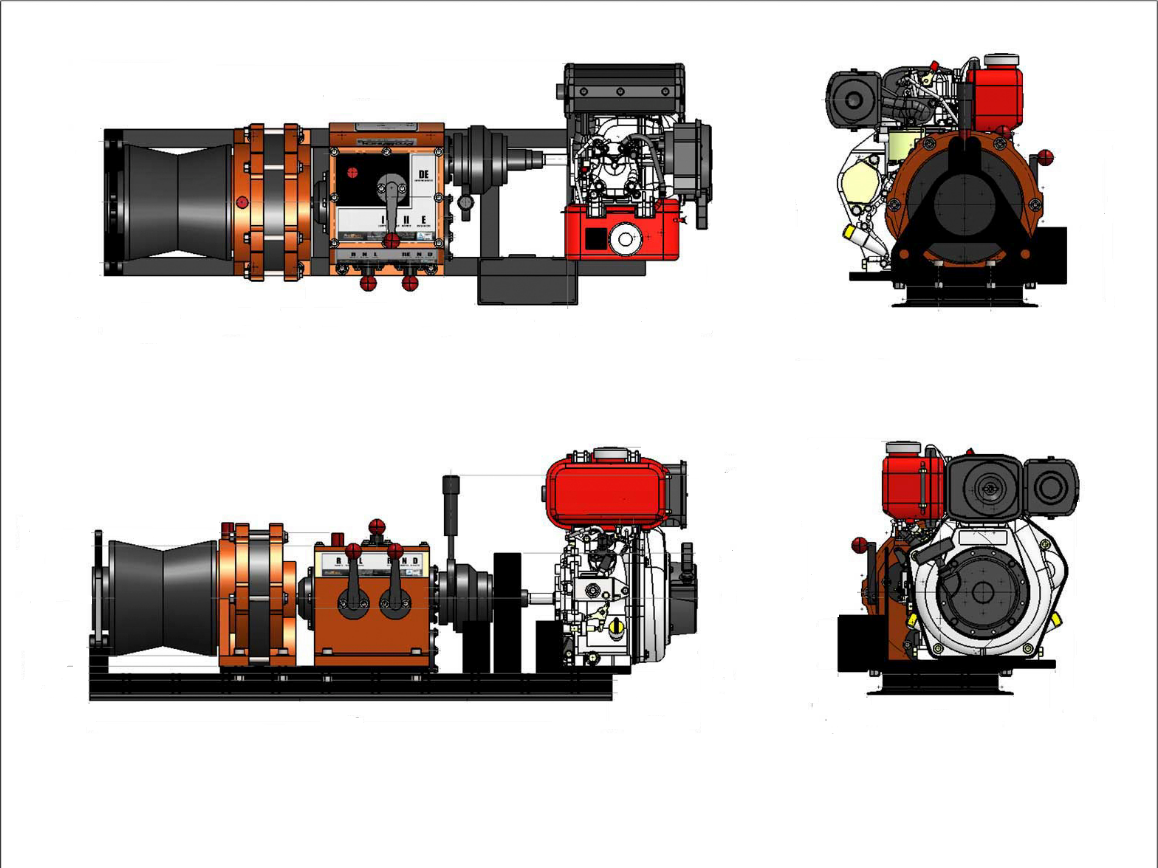

Technical data of 50KN Fast speed air cooled diesel engine cable pulling winch driven by shaft

Model	Engine	Power	Gear: Forward	Pull Force(KN)	Speed(m/min)	Weight(Kg)	Dimension(mm)
JJM-5B	Air Cooled Diesel Engine	6.3KW, 3600rpm	SlowⅠ	50	5	200	1200600750
			Slow Ⅱ	30	9
			Fast Ⅰ	15	14
			Fast Ⅱ	9	24

50KN Fast Speed Cable Pulling Winch Air Cooled Diesel Enginen By Shaft

Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Package

It is packed with standard export plywood case
